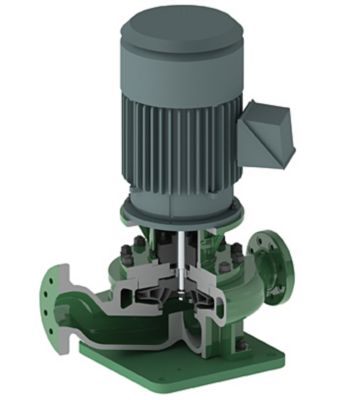

Model VP-M (OH5)
Overview: VP-M (OH5) hydrocarbon pump → fully compliant with API 610 requirements
Operating Parameters:
Flow rate
in excess of 8,000 US gpm (1,800 m³/h)
Standard Design Working Pressure
of 725 psig (5,000 kPaG)
Differential heads
up to 1,100 ft (335 m)
Temperatures
up to 300 °F (150 °C)
Download section
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
- Filename
- CPC Pump Brochure_Full Product Line Nov 2023-mapindd.pdf
- Size
- 9 MB
- Format
STANDARD FEATURES
- Widest hydraulic coverage in the industry
- Application tailored hydraulic selections
- 300# flange ratings
- Available in all API 610 Table H-1, S-4 through D-2 materials
- Cast or fabricated impellers
- Close clearance metalized carbon impeller bearing, a combination radial bearing/throat bushing
Optional features
- Mounting plate
- Soleplate
Typical Applications for the VP-M (OH5) Hydrocarbon Pump:
- The VP-M is an inline pump for applications where space limitations, piping configuration and maintenance considerations are the primary factors. The VP-M eliminates the need for the rigid coupling used for traditional in-line pump design.
Model VP-M (OH5)
| Technical property | Value |
|---|---|
| Max Capacity | 8,000 US gpm 1,800 m³/h |
| Max Head | 1,100 ft 335 m |
| Max Temperature | 300 °F 150 °C |
| St. pressure | 725 psig 5,000 kPaG |
