Testing

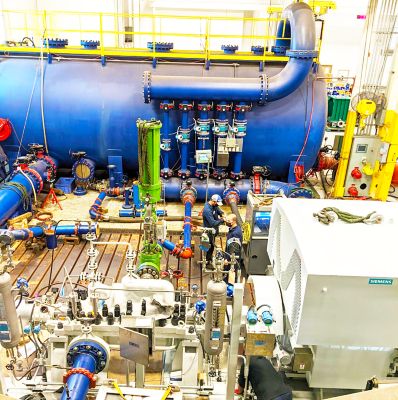

 CPC Pump on the test stand

Testing

Testing

To ensure that CPC pumps meet our customer’s specifications and expectations, each hydrocarbon pump unit must successfully pass the following quality tests:

  • Hydrostatic pressure
  • Hydraulic performance
  • Vibration
  • Mechanical reliability
  • Air test of complete assembled unit prior to shipment

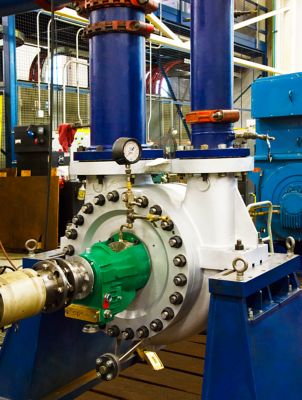

Test Stand - BB2 Pump being tested

Our testing capabilities for your API 610 pump:

  • 30,000 gallon (114 m³) test tank
  • Up to 4,500 HP (3,350 kW) VFD drive
  • Test motor voltages of 460V, 575V, 6kV, 10kV, 11kV, 13kV and 13.6kV
  • Hydrostatic testing up to 8,000 psig (55,200 kPaG)
  • MPI, LP and RT non-destructive examination available
  • Hardness testing
  • PMI on alloys
Test Stand - BB2 Pump being tested

Reach out

Reach out to learn more

Find out more about our diverse range of API 610 process pumps. From new energy to plastic recycling to traditional hydrocarbon applications, our solutions can improve efficiencies in current operations and help to navigate new growth markets.
