Model VP-B (OH3)

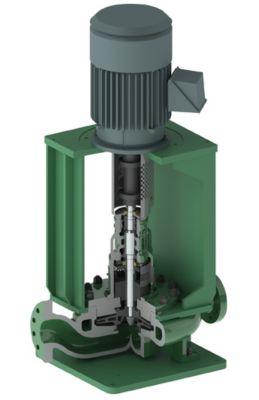

Overview: VP-B (OH3) hydrocarbon pump → fully compliant with API 610 requirements
Operating Parameters:
Flow rate
in excess of 10,000 US gpm (2,272 m³/h)
Standard Design Working Pressure
of 725 psig (5,000 kPaG)
Differential heads
up to 1,300 ft (395 m)
Higher pressure designs available
in excess of 1,450 psig (10,000 kPaG)
Temperatures
up to 800 °F (425 °C)
Download library
Downloads
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
- Filename
- CPC Pump Brochure_Full Product Line Nov 2023-mapindd.pdf
- Size
- 9 MB
- Format
STANDARD FEATURES
- Widest hydraulic coverage in the industry
- Application tailored hydraulic selections
- 300# flange ratings
- Available in all API 610 Table H-1, S-4 through D-2 materials
- Cast or fabricated impellers, for expanded hydraulic coverage
- Close clearance metalized carbon throat bushing, for optimal control of stuffing box environment
- Rigid design shaft for minimal deflection to meet and exceed API 610 requirements
- Cylindrical roller radial bearings for ample load carrying capability
- Duplex angular contact 7300 series thrust bearings
- Grease, oil circulation, or pure mist lubrication
- Inpro/Seal bearing housing closures
Optional features
- Semi-open Coke Crusher design, with wear plate
- High pressure special casing design
- Oversized shafts and bearing housing arrangements
- Magnetic bearing housing isolators
- Mounting plate
- Soleplate
- Thrust Pod (TP) design, for extra heavy thrust loads, with oil bath lubrication
- Non-standard API 610 material available
Typical Applications for the VP-B (OH3) Hydrocarbon Pump:
- Single suction, in-line mounted process pumps for refinery services where a separate pump bearing house is required
Model: VP-B (OH3)
| Technical property | Value |
|---|---|
| Max Capacity | 10,000 US gpm 2,272 m³/h |
| Max Head | 1,300 ft 395 m |
| Max Temperature | 800 °F 425 °C |
| St. pressure | 725 psig 5,000 kPaG |
| Opt. pressure | 1,450 psig 10,000 kPaG |
