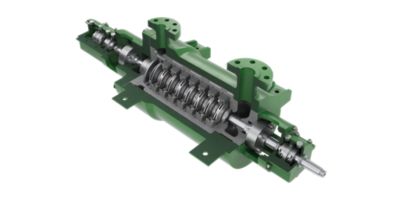

HBD / HBV (BB5)
Between bearings, multistage double casing pumps, fully compliant with API 610 requirements
Operating Parameters:
FLOW RATE
4,400 US gpm (1,000 m³/h)
Temperatures
840 °F (450 °C)
Differential heads
12,000 ft (3,660 m)
Standard Design Working Pressure
2,250 psig (15,000 kPag)
Download section
CPC PUMPS HB BB5 BROCHURE
CPC PUMPS HB BB5 BROCHURE
- Filename
- CPC_Pumps-BB5.pdf
- Size
- 7 MB
- Format
- application/pdf

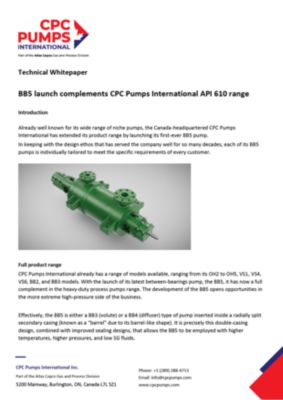

BB5 WHITEPAPER
BB5 Launch Whitepaper
- Filename
- BB5_Whitepaper.pdf
- Size
- 181 KB
- Format
- application/pdf
Standard Features
- Wide hydraulic coverage
- Application tailored hydraulic selections
- 600/900/1500/2500# flange ratings
- Available in all API 610 Table H.1 materials
- Balancing drum or hydraulically opposed impeller arrangement for thrust balancing
- Diffuser & volute designs available
- Integral balance line for minimized chamber pressures
- Robust design shaft for minimal deflection to meet and exceed API 610 requirements
- Inpro/Seal bearing housing closures
- Heavy Duty baseplate, drip rim or drip pan designs
Optional Features
- Flange sealing options to suit customer preferences
- High pressure special casing design
- Fan/Heat-sink bearing housing cooling arrangement for operation at elevated temperatures, to eliminate the need for cooling water
- Magnetic bearing housing isolators
- All bearing combination arrangements are available where suitable: Ball/Ball, Sleeve/Ball, Tilt Pad/Sleeve
| Technical property | Value |
|---|---|
| Max capacity | 4,400 US gpm |
| 1,000 m³/h | |
| Max Head | 12,000 ft |
| 3,660 m | |
| Max Temperature | 840 °F |
| 450 °C | |
| St. Pressure | 2,250 psig |
| 15,000 kPaG | |
| Opt. Pressure | 3,900 psig |
| 26,000 kPag |
