Model HDR (BB2)

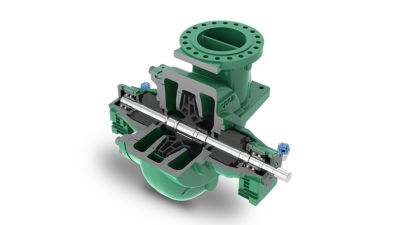

Overview: HDR-BB2 hydrocarbon pump → fully compliant with API 610 requirements:
Operating parameters
Flow rate
in excess of 15,000 US gpm (3,400 m³/h)
Standard Design Working Pressure
of 725 psig (5,000 kPaG)
Differential heads
up to 1,400 ft (425 m)
Higher pressure designs available
Temperatures
up to 800 °F (425 °C)
Download section
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
- Filename
- CPC Pump Brochure_Full Product Line Nov 2023-mapindd.pdf
- Size
- 9 MB
- Format
STANDARD FEATURES
- Widest hydraulic coverage in the industry
- Application tailored hydraulic selections
- 300# flange ratings, with side suction or top suction design casings
- Available in all API 610 Table H-1, S-4 through D-2 materials
- Close clearance metalized carbon throat bushing for optimal control of stuffing box environment
- Rigid design shaft for minimal deflection to meet and exceed API 610 requirements
- Cylindrical roller radial bearings for ample load carrying capability
- Duplex angular contact 7300 series thrust bearings
- Inpro/Seal bearing housing isolators
- Heavy Duty baseplate, drip rim or drip pan designs
Optional features
- High pressure special casing design
- Oversized shafts and bearing housing arrangements
- Fan/Heat-sink bearing housing cooling arrangement for operation at elevated temperatures, to eliminate the need for cooling water
- Magnetic bearing housing isolators
- All bearing combination arrangements are available where suitable: Ball/Ball, Sleeve/Ball, Tilt Pad/Sleeve
Typical Applications for the HDR-BB2 Hydrocarbon Pump:
- Double suction, centre-line mounted pumps designed for high temperatures and pressures with top/top nozzles
Model: HDR (BB2), Type: Between Bearing, Double Suction
| Technical property | Value |
|---|---|
| Max Capacity | 15,000 US gpm 3,400 m³/h |
| Max Head | 1,400 ft 425 m |
| Max Temperature | 800 °F 425 °C |
| St. pressure | 725 psig 5,000 kPaG |
| Opt. pressure | 3,750 psig 26,000 kPaG |
