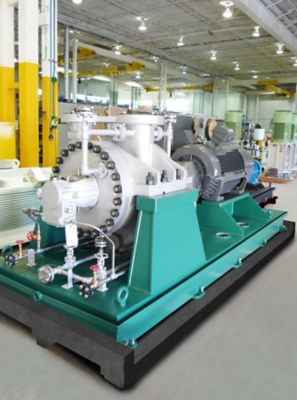

Model H2R (BB2)
Overview:
The CPC H2R Pumps (BB2) are two-stage, single or double suction first-stage centrifugal pumps, fully API 610 compliant and designed for maximum reliability. Offering 300# or 600# flange ratings with a top suction, top discharge casing, they deliver industry-leading hydraulic coverage with application-specific selections to optimize performance in critical operations. Built from API 610 Table H.1 materials, they ensure durability in demanding environments.
Engineered for efficiency, H2R Pumps feature a rigid shaft design to minimize deflection, a close-clearance metalized carbon throat bushing for superior stuffing box control, and Inpro/Seal bearing housing closures for enhanced protection. A heavy-duty baseplate, available in drip rim or drip pan designs, provides robust support, making the H2R an ideal solution for high-performance applications.
Operating Parameters:
Flow rate
8,100 US gpm (1,840 m³/h)
Temperatures
800 °F (425 °C)
Differential heads
2,800 ft (850 m)
Standard Design Working Pressure
725 psig (5,000 kPaG)
Higher pressure designs available
Download section
CPC PUMPS COMPLETE PRODUCT LINE BROCHURE-2024
- Filename
- CPC Pump Brochure_Full Product Line Nov 2023-mapindd.pdf
- Size
- 9 MB
- Format
STANDARD FEATURES
- Widest hydraulic coverage in the industry
- Application tailored hydraulic selections
- 300# or 600# flange ratings, with top suction top discharge design casings
- Available in all API 610 Table H.1 materials
- Close clearance metalized carbon throat bushing, for optimal control of stuffing box environment
- Rigid design shaft for minimal deflection to meet and exceed API 610 requirements
Inpro/Seal bearing housing closures - Heavy duty baseplate, drip rim or drip pan designs
OPTIONAL FEATURES
- High pressure special casing design
- Oversized shafts and bearing housing arrangements
- Fan/Heat-sink bearing housing cooling arrangement for operation at elevated temperatures, to eliminate the need for cooling water
- Magnetic bearing housing isolators
- All bearing combination arrangements are available where suitable: Ball/Ball, Sleeve/Ball, Tilt Pad/Sleeve
| Technical property | Value |
|---|---|
| Max capacity | 8,100 US gpm |
| 1,840 m³/h | |
| Max Head | 2,800 ft |
| 850 m | |
| Max Temperature | 800 °F |
| 425 °C | |
| St. Pressure | 725 psig |
| 5,000 kPaG | |
| Opt. Pressure | 3,750 psig |
| 26,000 kPag |
